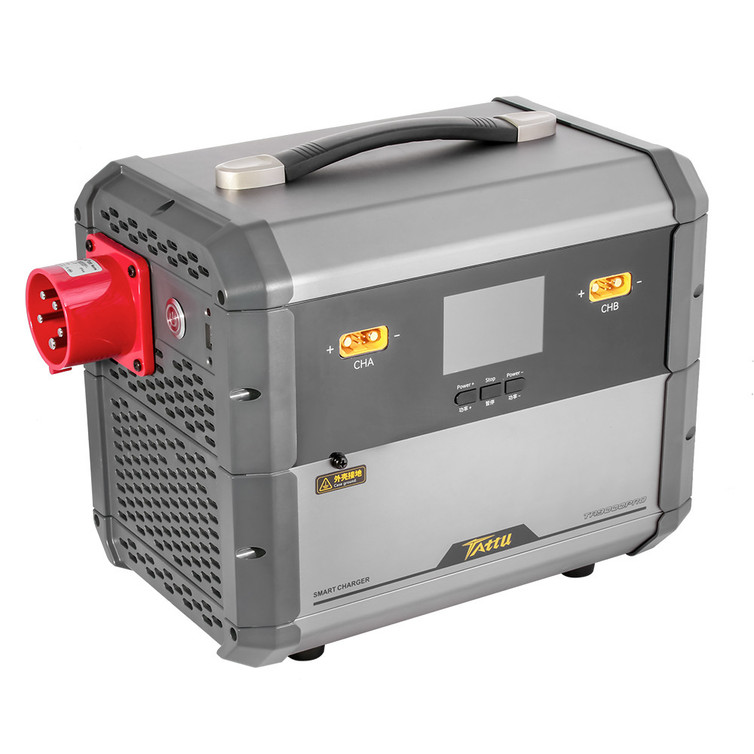

Tattu TA9000 PLUS Dual-Channel Smart Charger 120A/9000W for 12-24S Smart Battery

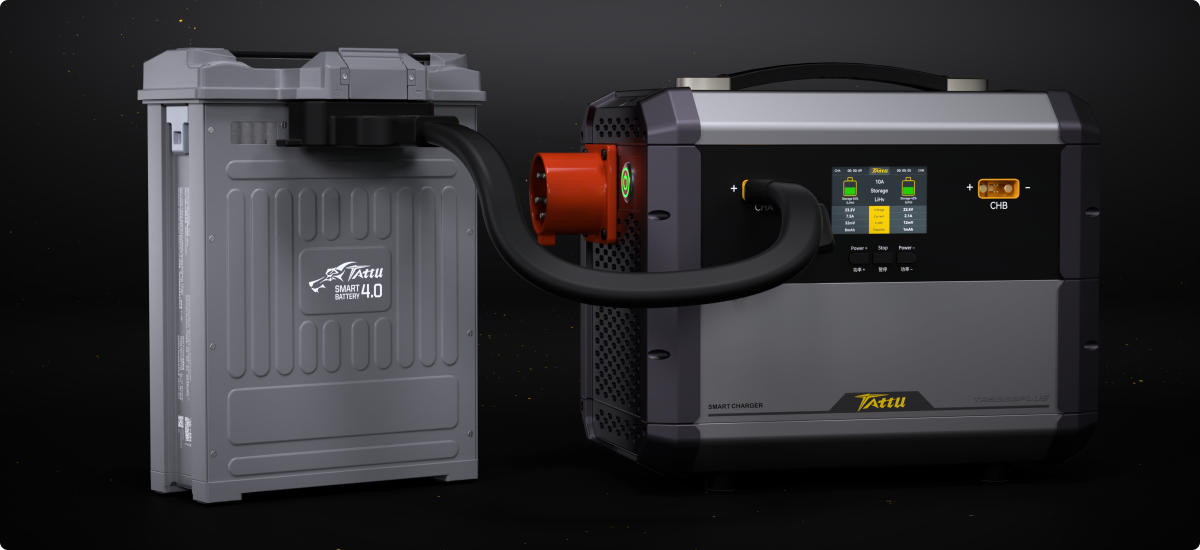

TA9000 PLUS Charger is a dual-channel intelligent charger that supports multiple input methods, including a generator, with safety protection functions such as over-voltage, voltage limit, overheat, current limit, short-circuit and reverse connection protection, etc. Once the Tattu smart battery is successfully inserted into the charger for communication, the charger can automatically read the battery information and enter into intelligent charging without any operation. During the charging process, the charger will adjust the charging current according to the real-time status of the battery to ensure charging safety.

TA9000 PLUS Charger ensures your safety while charging, specially designed for Tattu 12S-24S smart battery, with additional “smart intelligence” features to simplify operation and connectivity between charger and battery. The Tattu Dual Smart Charger 120A/9000W therefore offers all our expertise in one charger that will meet all your demands for flawless operational functionality like:

1. Smart Battery Detection: Smart battery auto detection setting while connecting the battery to the charger. When the "Tattu" logo in the center at the top of the screen changes from black to yellow, it indicates successful communication between the battery and the charger.
2. Rapid Charging: When the charger is connected to two identical battery packs, the one with the higher SOC will charge first at max. Once the first battery pack is fully charged, the second battery pack will begin charging.
3. Two Charging Models: Standard Charging & Fast Charging; Press ‘Power+’ for 5 seconds to skip the smaller charging current in the end.

4. User-Friendly Interface: Simple comfort push button operation. Multiple language options are available to choose.

VIDEO:

TA9000 PLUS Charger only supports Tattu Smart Battery. Soft pack batteries are not supported.

SPECIFICATIONS:

Output Voltage: AC100-240V 50/60Hz; Three-phase power is not supported.

Channels: Two

Max Charge Power: Max 9000W

Charge Current: Max 120A

Working Temperature: 0℃~45℃

Battery Type: 12S-24S Tattu Smart Batteries

Output Plug: AS150U-F

Size: 398x225x308mm

Weight: 14kg

Accessories Included:

Main Power Cable (16A), AS150U-F to ACES Transferring Cable;

Option: AS150U-F to Molex Transferring Cable

Recommended Battery: Tattu 4.0 Series

For more details about the charger, please visit the product page: https://www.tattuworld.com/products/ta9000-plus-smart-drone-battery-charger.html
